Brand: Happybuy

Color: A03

Features:

• Model: A03, Filling range: 5-50ml (adjustable), Capacity of Hopper: 22lbs/10kg, Filling accuracy:±1%
• Pneumatic piston filling, piston feed speed adjustable. 40 bottles/min (depending on operator speed, product density, draw length, a fill speed, among others)
• liquid filler with Stainless steel body machine, Rugged rotary valve system design
• With the filling volume regulator knob, quantitative discharging, filling rate and filling speed can be controlled manually
• The filling machine can be used to liquid, liquid food, oil, shampoo, shampoo cream liquid substance, with paste liquid filling machine function

Publisher: Happybuy

Details:

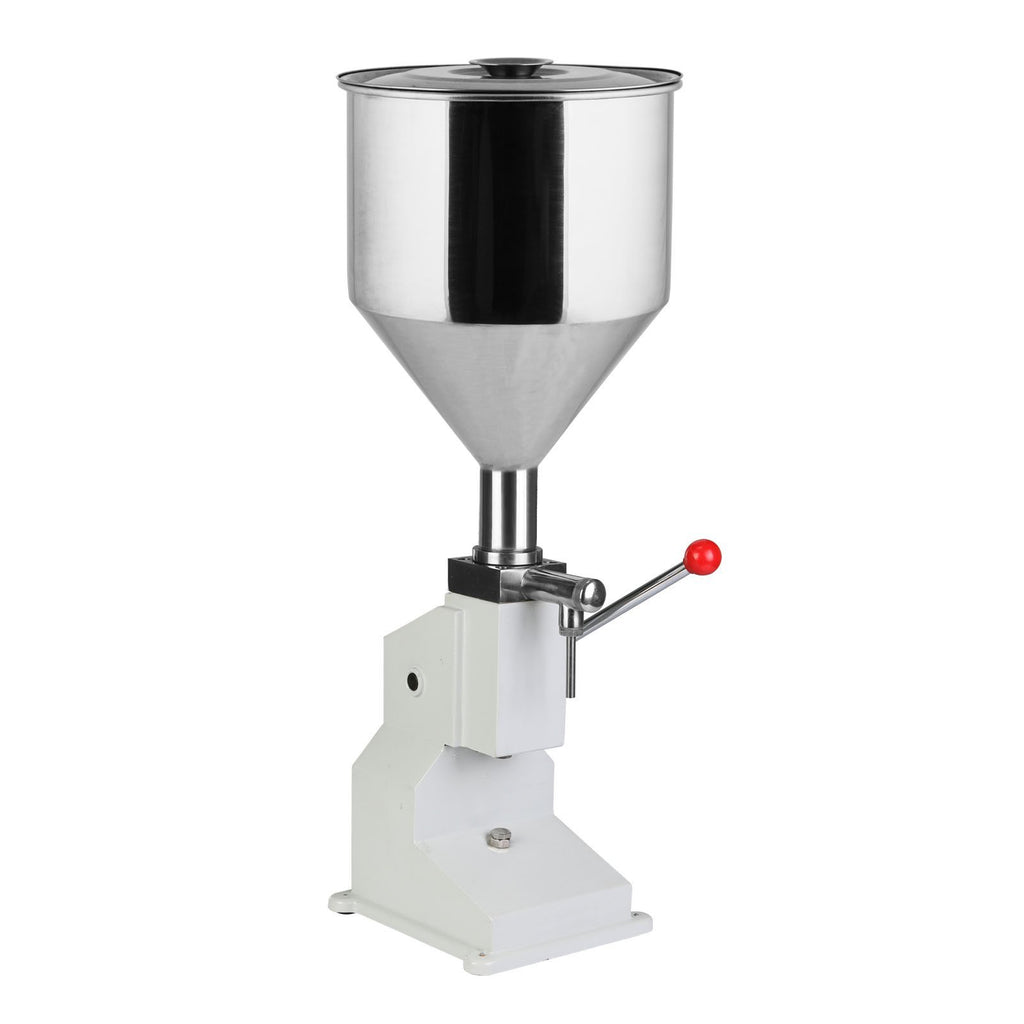

A03 Manual Filling Machine

A03 Manual filling machine adopts a piston type structure, the liquid, paste and other materials for 0-50g quantitative filling. Filling of liquid, liquid food, oil, shampoo, shampoo cream liquid substance,with paste liquid filling machine function. Applicable to the pharmaceutical, cosmetic,food, pesticides and special industries,and also can be used for sealing the hose has the quantitative filling,is the ideal paste liquid filling equipment.

Specifications

Model: A03

Working power: pneumatic

Speed: 20-60 times/minute

Filling accuracy: ±0.2-1ml

Hopper volume: 10L

Advantage: save both time and labour

Working pressure: 0.4-0.6MPa or 58-87PSI

Filling range: 5-50ml (adjustable)

Package size(L*W*H): 34*34*77cm (14*14*31inch)

Gross weight: 10kg (22lbs)

Package Content

1 x Nozzles(4mm/8mm)

1 x A03 Liquid Filling Machine

1 x O-Ring

1 x Screwdriver

UPC: 601707110483

EAN: 601707110483

Package Dimensions: 30.8 x 12.8 x 12.8 inches
